Seamless Skills Expertise

At UCE we work seamlessly between disciplines allowing the earthing design to be completed in concurrence with the structural, civil and electrical designs. This results in an earthing system which considers all aspects of the design and allows for a timely and cost effective delivery.

UCE can assist with designs from concept to completion, from soil resistivity testing to obtain the existing soil structures on site, developing a safe earth grid design through modelling in both CDEGSTM and XGSLabTM software packages, through to post install testing to confirm the installed earthing system meets the design and is safe.

UCE Earthing Services


All electrical networks must be safe. This means they require earthing systems designed and tested to:


  • Avoid hazardous stray voltages
  • Prevent damage to equipment
  • Provide electrical safety to personnel and livestock


UCE have over 10 years’ experience supplying technical earthing consultancy services across UK industry, and our cross-sector inlvolvement includes:

  • Providing earthing design and testing services within ENWL, NPG, UKPN, SPEN, SSEN, WPD and Private Wire networks


VIEW OUR EARTHING SERVICE BROCHURE

Previous/Current Earthing Designs:


  • Industrial sites

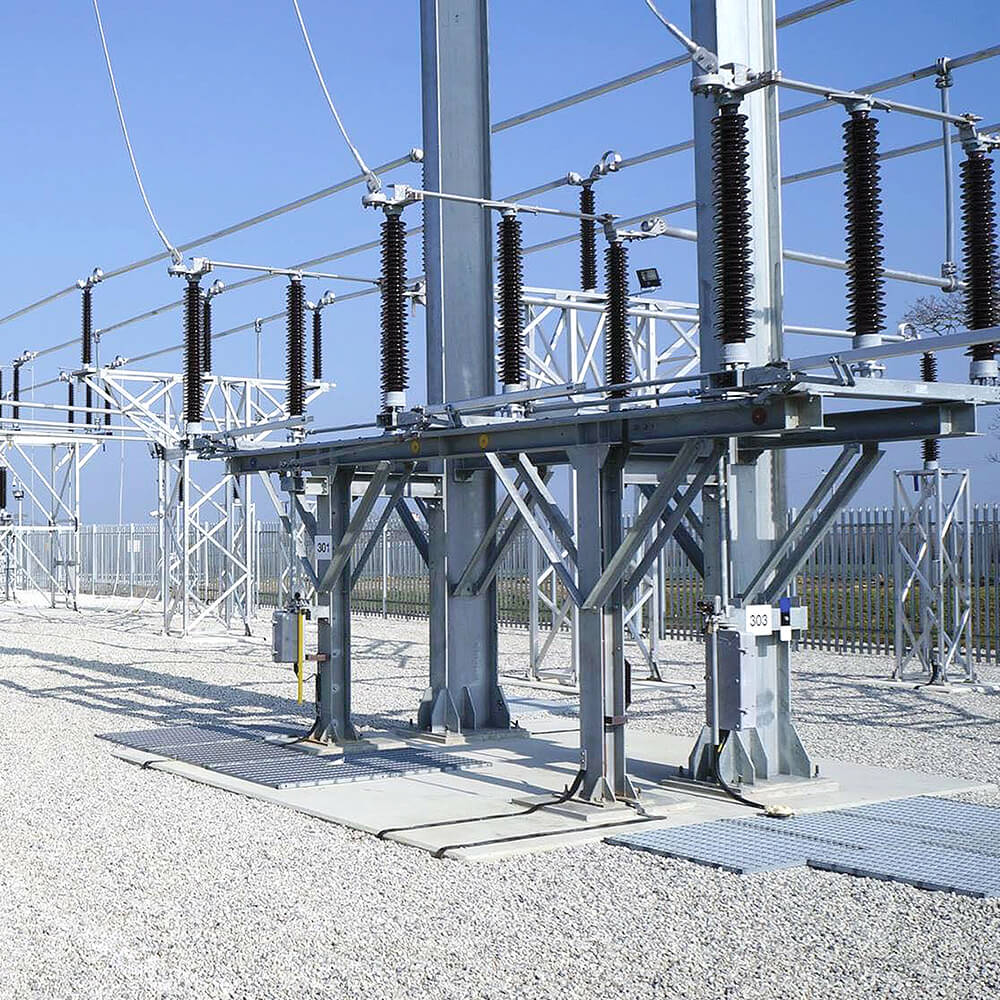

  • Substations
  • Solar farms
The complexity of each of the earthing systems are tailored to accommodate customer and DNO requirements.



Earthing systems designed to meet relevant uk standards including:


  • ENA TS 41-24, ENA ER S34, BS 7430, BS EN 50522
  • Specific DNO design requirement

Our Earthing Services:


All electrical networks must be safe. This means they require earthing systems designed and tested to:


  • Utility Searches

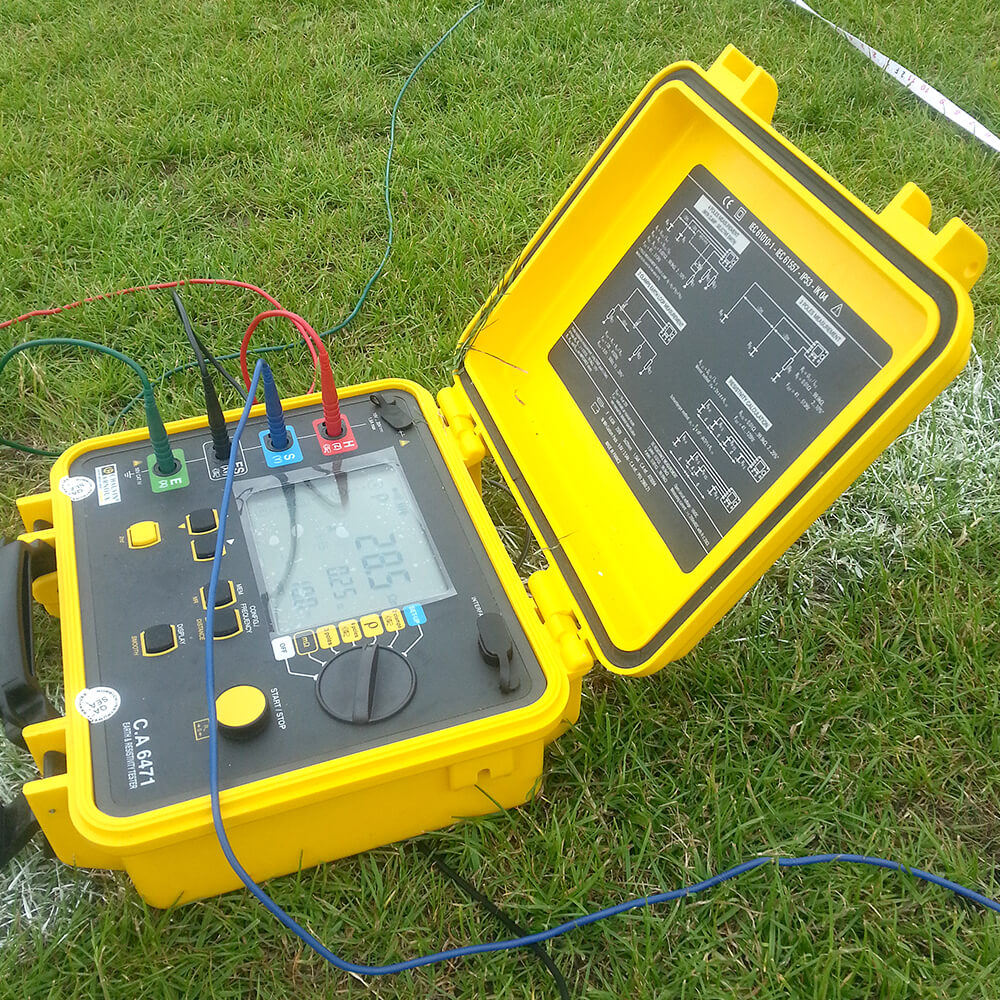

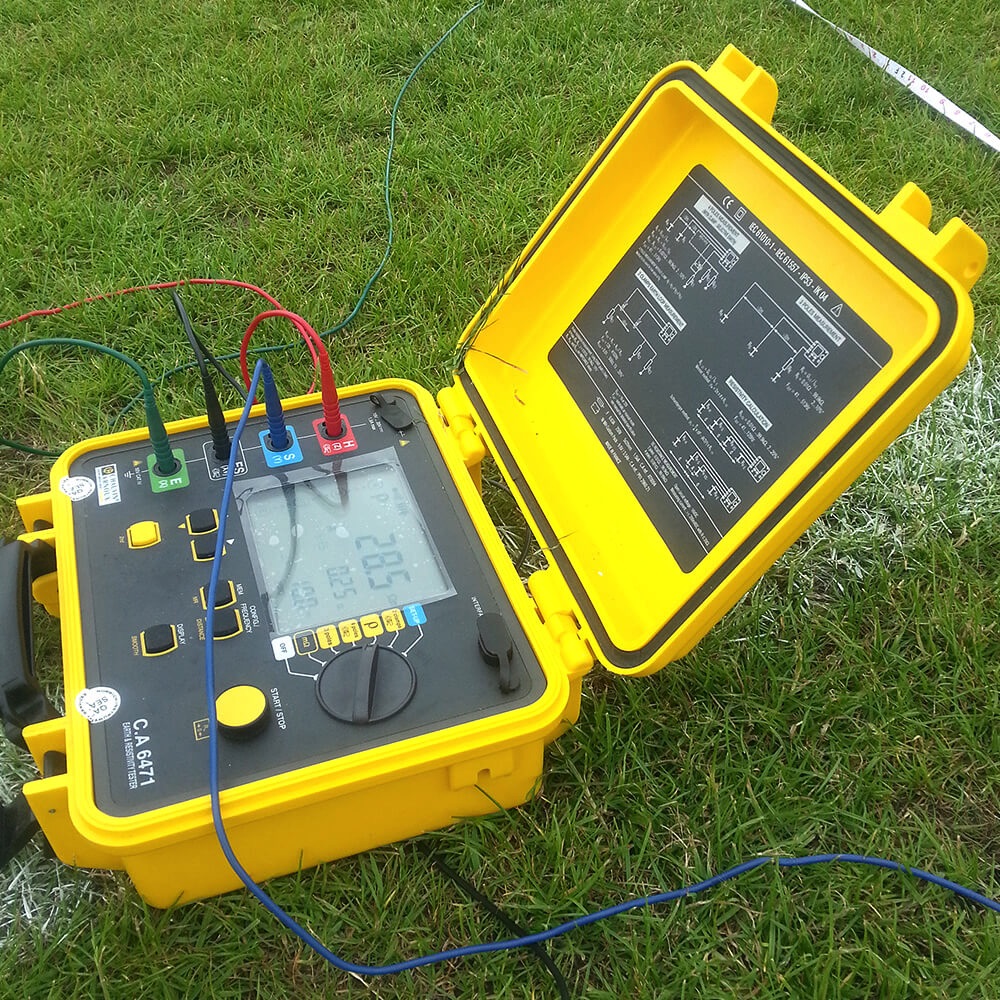

  • Soil Resistivity Surveys and Modelling
  • Earthing System Designs in CDEGSTM and XGSLabTM Software Packages
  • Model and Calculate Earth Return Fault Currents for Cable Connected Systems
  • Touch, Step and Transferred Voltage Potentials Assessment
  • Earth Potential Rise and Hot Zone Contour Assessment
  • Conductor Current Density Modelling
  • Post Construction Resistance Measurement using both the Fall of Potential and Clamp on Methods
  • Post Construction Earthing Surveys, Assessment and Auditing
  • Comprehensive Earthing Layout Drawings
  • Earthing System Designs in CDEGSTM and XGSLabTM Software Packages
  • Probabilistic Risk Assessment of Earthing Systems
